OTPH系列80S串行单片机控制/按键模式触发资料
DataSheet原理图下载最新版
OTPH系列80秒语音芯片资料:
AC8080-OTPH系列是深圳市环芯半导体有限公司2009年推出的新产品,在复位和内部供电方面有了更大的改善,同时推出新的烧录工具和编程软件,解决了AC8080原来仅支持3V供电的情况,提供稳定性能的语音输出.同时在功能方面有了更大的改进.
AC8080 80秒OTPH系列语音芯片是一颗支持PWM和DAC输出的80秒的OTP语音芯片,音质效果好，共有12个I/O口,其中4个Input,8个简单I/O,简单I/O只能触发单段语音或用于马达和闪灯，外围仅需一颗104电容，产品方案成本极低.
有DIP8/SOP8和DIP16封装,DIP8封装只有三个Input口,PWM情况下同AC8040脚位相同,仅DAC脚相反.DIP16封装才有12个IO口.
OTPH系列语音芯片的优势：
1, Otp-AC8080 内置电阻、外围没有元器件，5V供电仅需两个104电容(0.1uf,3V只需一个)．
2, 工作电压2.4V—5.5V；输出方式：PWM＆DAC .
3, 有８Pin和16Pin,3V和5V，DIP16和SOP8和DIP8,裸片封装可以选择.
4, 唯一一款可以烧录裸片出货的OTP语音芯片产品,不需光罩费,音质和单价市场最优.
5, 喇叭是8欧0.5W的,支持8欧阻值功率范围 : 0.25W-1W的喇叭.
6, DAC输出时820-1000欧的电阻接在8050的输入脚和VSS脚.
7, 若使用3V供电时只需要第八脚(VDD)和第四脚(VSS)之间接一个104,把3V供电加在VDD上面及可,第七脚(VDD5)悬空,5V供电见下面原理资料,更多详细资料请致电环芯公司0755- 28149272 /29058191,进行咨询!
8, 出样前请确认是否需要BUSY反馈脚位8脚封装TG3可用来做反馈脚
出货形式：
dip、 SOP、COB（可为挤压盒专用）、裸片（已烧录好）。 其中裸片一块Wafer可以同时烧录4款不同的产品，直接绑定生产，大大地节约生产时间, dip、 SOP、COB 1-3天交货，裸片5-7天交货。
AC8080 /5 V供电接线图PWM直推喇叭
AC8080 / 5V Serial Mode PWM  |

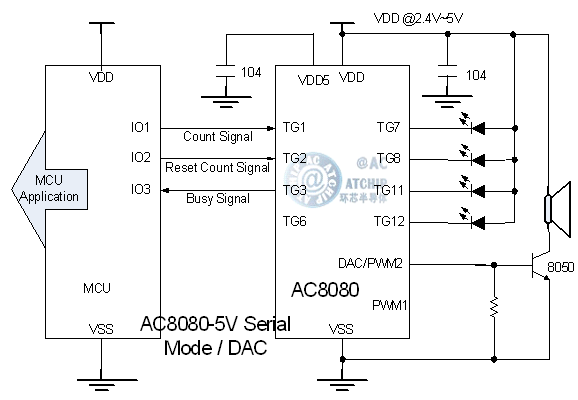

AC8080 /5 V供电接线图DAC三极管/供放/推喇叭
AC8080 / 5V Serial Mode DAC
|
AC8080 /5 V供电接线图PWM直推喇叭
AC8080 / 5V Stand-alone Mode PWM
|

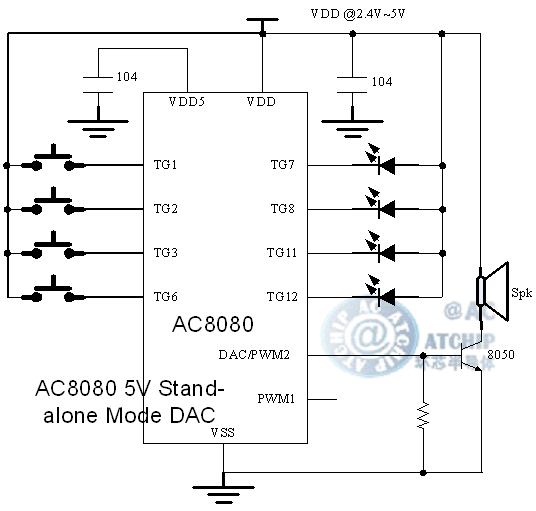

AC8080 /5 V供电接线图DAC三极管/供放/推喇叭
AC8080 / 5V Stand-alone Mode DAC
|
AC8080 封装形式DIP8 / SOP8
AC8080 - DIP/SOP
|
PIN |
NAME |
1 |
TG2 |
2 |
TG1 |
3 |
TG3 |
4 |
VSS |
5 |
PWM1 |
6 |
PWM2/DAC |
7 |
VDD |
8 |
VDD5 |
|
AC8080 Package Information
AC8080-D16 封装信息
|
脚位详细资料和功能 :
PIN |
NAME |
1 |
TG8 |
2 |
TG2/RSTB |
3 |
TG1 |
4 |
TG3 |
5 |
TG4 |
6 |
TG5 |
7 |
TG6 |
8 |
TG7 |
9 |
VSS |
10 |
PWM1 |
11 |
PWM2/DAC |
12 |
VDD5 |
13 |
VDD |
14 |
TG12 |
15 |
TG11 |
16 |
TG10 |
|
AC8080_OTP80S 串行应用说明
TG5对vdd复位 等待时间1ms
触发一次一个声音，mcu高电平发出几个脉冲识别第几个声音，但在每次发出脉冲之前,必须个给otp复位
附注: 以上资料暂时仅适用于AC8080-OTP80S/ DIP8和SOP8的芯片..
IO口只用到了TG1/TG2和TG3/别的IO指示部分只对DIP16的80sOTP芯片有效
AC8080 脚位描述 PIN Description
PIN NAME |
I/O |
Function |
TG1 |
INPUT |
Key Stand-alone Trigger Mode : TG1 is used to trigger the maximum 32 Voice Group one by one sequentially. |
|
|
Serial Trigger Mode : TG1 is used to trigger the maximum 64 Voice Group. |
|
|
|
TG2 |
INPUT |
Key Stand-alone Trigger Mode : TG2 is used to trigger the maximum 21 Voice Group one by one sequentially. |
|
|
|
TG3 |
INPUT |
Key Stand-alone Trigger Mode : TG3 is used trigger Only One Group. |
|
|
|
TG4 |
INPUT |
Key Stand-alone Trigger Mode : TG4 is used trigger Only One Group. |
|
|
|
TG5 |
INPUT |
Key Stand-alone Trigger Mode : TG5 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG6 |
INPUT |
Key Stand-alone Trigger Mode : TG6 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG7 |
INPUT |
Key Stand-alone Trigger Mode : TG7 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG8 |
INPUT |
Key Stand-alone Trigger Mode : TG8 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG9 |
INPUT |
Key Stand-alone Trigger Mode : TG9 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG10 |
INPUT |
Key Stand-alone Trigger Mode : TG10 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG11 |
INPUT |
Key Stand-alone Trigger Mode : TG11 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TG12 |
INPUT |
Key Stand-alone Trigger Mode : TG12 is used trigger Only One Group. |
|
OUTPUT |
As Output PIN , Output the BUSY or Flash Signal. |
|
|
|
TEST |
INPUT |
As a TEST PIN, for Enter Testing Procedure . |
|
|
|
RSTN |
INPUT |
As a Low Reset PIN. |
|
|
Serial Trigger Mode : RSTN is used to trigger the maximum 64 Voice Group. |
|
|
|
PWM1 |
OUTPUT |
As a PWM PIN , can Directly drive the Speaker . |
|
|
As a DAC PIN , 8 bit D/A Current Output.? |
|
|
|
PWM2 |
OUTPUT |
As a PWM PIN , can Directly drive the Speaker . |
|
|
|
VDD |
INPUT |
Power Supply PIN , Connected with VDD5 @ 2.4~3.6 V Working Voltage. |
|
|
Power Supply PIN , Connected with a 0.1 uF to VSS. |
|
|
|
VSS |
INPUT |
Connected to Ground. |
AC8080 电气特性 / Electrical Characteristics
Symbol |
Characteristic |
Rating |
Unit |
Min. |
Typ. |
Max. |
tdb |
Key Trigger debounce time (long) |
14 |
|
|
ms |
tdb |
Key Trigger debounce time (short) |
50 |
|
|
us |
tgr |
Key Trigger Pulse width |
|
|
|
|
tPW |
Serial Mode Input Pulse Width |
100 |
|
|
us |
tPI |
The interval of two pulse |
100 |
|
|
us |
tBH |
Busy signal output hold time |
400 |
|
|
us |
tBD |
Busy signal output delay time |
400 |
|
|
us |
tdV |
Voice ouput delay time |
400 |
|
|
us |
tCS |
Chip Select setup time |
1 |
|
|
us |
tDS |
Data In setup time |
1 |
|
|
us |
tDH |
Data In hold time |
1 |
|
|
us |
tCP |
Clock Pulse Width |
1 |
|
|
us |
tCC |
Clock Cycle time |
2 |
|
|
us |
tCH |
Chip Select hold time |
1 |
|
|
us |
DC 电气特性 / Electrical Characteristics
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
Condition |
Operating voltage |
VDD |
2.4 |
3.0 |
3.6 |
V |
|
Standby current |
Isb |
|
1 |
5 |
uA |
VDD=3V,no load |
Operating current |
Iop |
|
600 |
|
uA |
VDD=3V,no load |
Drive current of Output |
Iod |
|
10 |
|
mA |
VDD=3V
VOUT=0.6V |
Sink current of Output |
Ios |
|
30 |
|
mA |
VDD=3V
VOUT=2.4V |
Drive current of PWM |
Iod |
|
200 |
|
mA |
VDD=3V,VOUT=1.5V |
Sink current of PWM |
Ios |
|
200 |
|
mA |
VDD=3V,VOUT=1.5V |
出货形式：
dip、 SOP、COB（可为积压盒专用）、裸片（已烧录好）。 其中裸片一块Wafer可以同时烧录4款不同的产品，直接绑定生产，大大地节约生产时间, dip、 SOP、COB 1天交货，裸片5-7天交货。
DataSheet原理图下载
相关产品：AC8040-OTP40秒 AC8010-OTP10秒(已被8020替代) AC8020-OTP20秒
最新产品: AC9010-OTP10秒 AC9020-OTP20秒 AC9040-OTP40秒 AC9080-OTP80秒 AC8080-OTPH80秒
新产品系列OTP语音芯片全面支持4.5V和3V,为您提供最加稳定的语音输出.
